water heater repair: water heaters are now among the equipment that can be found in most buildings in the country. Over 5% to 5% of household energy consumption is spent on the production of sanitary hot water, which indicates the high consumption of water heater systems and their importance in our lives today. If the package system you use is also a wall water heater, you may occasionally experience problems with your system. Sure, contacting and using the skill of an expert repairer can solve all the problems, but you can easily fix some of the defects in wall heaters yourself. The following water heater repair tutorial tries to help you with troubleshooting and troubleshooting by providing step-by-step explanations.

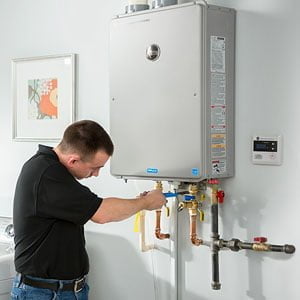

Introduction to water heater components for water heater repair:
The first step to using wall mounted water heater repair tutorials is to get acquainted with the components of these systems.
- Adjustable warhead
- Heat Adjustable Heat Key
- Heat Exchanger Key
- Female spark electrode
- Heat exchanger
- Sensor electrode
- Torch set
- Multi-way collection
- Gas valve set
- Water Regulator Set
- Board Set
- Battery compartment assembly
- Inlet gas pressure duct visit
- Multi-channel gas pressure duct visit
- Cold water inlet duct
- Hot water outlet
- Gas inlet duct
water heater repair: open and close components
In order to obtain the desired components of the wall pack system after troubleshooting, you need to first study how to open and close the wall water heater components. The general steps will be as follows.
- Disconnect power supply
- Close the gas and water supply valves to the water heater
- Separate the water heater cover using the screw connection opening
- Open copper inlet tubes for cold water inlet and hot water outlet
- Open the gas hose nut connected to the water heater regulator
- Separation of water heater chimney interface pipe
- Separate the water heater from the wall through high pressure and release the screws
- Put water heater on your desk
- Unscrew the adjusting cap retaining screws, remove the spring fasteners attached to the heat exchanger,
- Open the copper tube nuts between the regulator and the converter
- Unscrew the thermocouple, electrode and spark plug, remove the cigarette lighter and remove them from the water heater
- Open the tubing nut nuts from the gas regulator body and the spark plug nozzle, and isolate the thermocouple nut from its junction.
- Open the pilot nozzle from the base of the flame and flame dispenser, and isolate the flame spreader from the water heater
- Unscrew the throat side of the gas regulator burner
- Separate the regulator and the back of the water heater using the screws opening
- Torch separation
- Remove the inlet and outlet pipes of the converter by pushing it upwards
When closing the water heater it is also necessary to repeat all the above steps in reverse. To test for possible leakage of water and gas inlet valves, it is necessary to open and test them. Water leakage is noticeable. But you need help from the soap floor to test the gas leak

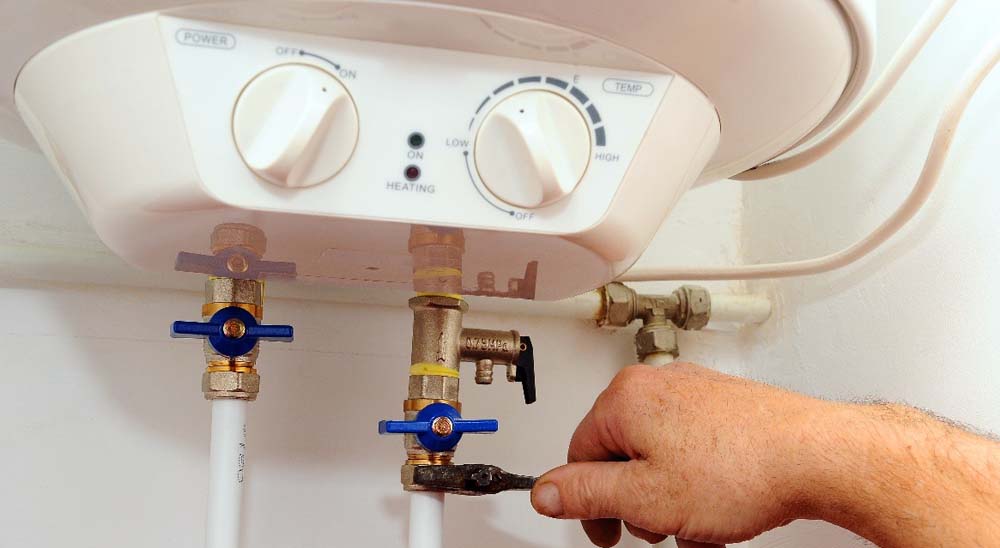

Troubleshooting for water heater repair
Once you understand all the components and how to access and test them, you can now repair your systems by referring to the references and menus for troubleshooting water heaters. Troubleshooting water heaters often include the limited cases mentioned in previous articles. It’s you, and here’s a video tutorial on repairing a water heater
Occasionally, the burner may be damaged in various ways. For example, there may be no sparks in the system. In this case it’s your woman’s spark system. To make repairs you need to check and fix the following:
Check the wiring connections. If connections are loose or loose, you should fix them.
The duct nozzle, the duct filter, or the air duct filter is clogged and precipitated. In this case, clean the duct carefully with a little care. However, the deposition or clogging may be related to the tip of the spark ignition electrode, which can be easily cleaned.
The piezoelectric lighter or the electrode itself may be damaged or fractured. If so, just replace them.
The second is the state of the spark, but the candle does not light. In such circumstances it is sufficient:
Do not forget to check the thermocouple. The main drawback may be the thermocouple system. In this case, the thermocouple connections should be tested and replaced if the thermocouple fails to respond.
Check the magnetic and butterfly valves.
The third case, which occurs very much, is when the hot water flow does not open the burner.
The first step is to check whether the valves are healthy and open.
The second is the investigation of heat exchanger pipes and water heater diaphragms. If no obstruction is observed in the tubes, also check the accuracy of the diaphragm.
Gas leakage repairs
Gas leakage can lead to irreparable risks and damages. Therefore, it is imperative that you remedy this disorder immediately, and seek professional help if it fails to prevent leakage.
Firstly, case is to examine all the screws connected to the gas water heater system. Examine regulator screws, gas vent screws, gas manifold screws, or hose nuts and lamp connectors.
Secondly, is to check the accuracy of the gas regulator. Check it out and replace it if you see any bumps or holes in the regulator body.
Thirdly, Damage and wear and tear on all gaskets and lubricants used in the system can cause gas leakage. Check all of them and replace them if needed.
Fourthly, Used valves or hoses may be damaged. Test them and change them if needed.
Why is it important to mention the model when requesting a water heater?
When you submit your order for dispensing a water heater repairer, it is important to state in the order form what type of water heater you have, as the type of repairs for a gas water heater may vary with the electric water heater and the repairers who Introduced to offer different prices. So if your water heater is not working well, then submit your application to access the best water heater repairers in your city without hassle.
Factors Affecting the Cost of Water Heater Repair:
Number of water heater repair services
Replace each of the water heater parts
Wall water heater service
Tariff for wall water heater repair
Water heater repairs, standing water heater repairs, and the cost of installing water heaters and other things vary with these factors, as the cost of buying the parts required may vary.
Wages of wall water heater service
The cost of a wall water heater service varies depending on your water heater requirements. Some water heaters require acid cleaning, and some de-watering and in some cases both. Depending on the salary of the wall water heater service will be different depending on the needs of your loved ones water heater.
